Customer need
The customer needed automatic pallet wrapping with particular attention to operator protection. Machine selection had to include the working-area boundary, controls and access for loading and unloading.
POLPACK ZEUS / Installation case study
Guarded automatic pallet wrapping station
A defined machine area. Access planned around the operator.
For a petrochemical customer, POLPACK ZEUS prepared an automatic pallet wrapping station with perimeter guarding and controls outside the machine area. The project covered the machine, guarding, gate and access for loading and unloading.
GuardingDefined working area

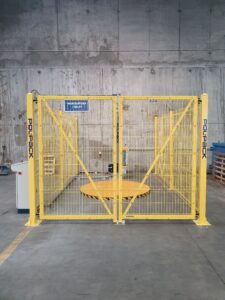

Gate monitoringOperation prevented with the gate open
External panelControls outside the guarded area
The requirement
Plan the complete wrapping workstation.
Space and access
We matched the guarding and access layout to the machine and the space available at the plant, separating operating activities from the automatic cycle.
The solution
Guarding, gate monitoring and external controls.
Guarded machine area
Full perimeter guarding restricts access to moving parts during the cycle. Limit switches monitor the gate position and prevent the machine from operating while the gate is open.

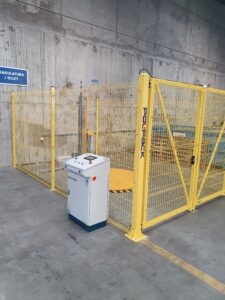

Control panel outside the guarding
The operator can control the machine without entering the area containing its moving parts. The panel position was considered together with the machine, gate and loading access.
The result
A clearer organisation of pallet wrapping.
Defined working area
The completed station has a clearly separated machine area and access matched to the operator's tasks. Guarding, gate monitoring and the external panel support safer and more convenient organisation of the wrapping process.
The whole workstation matters
This installation illustrates why choosing a pallet wrapper also means planning pallet feeding, operator access and the surrounding space. It is a guarded wrapping station; the documented scope does not establish a complete conveyor line.
Petrochemical industry
Project facts
These parameters describe this particular installation and do not establish the specification or results of every project.
| Customer | Petrochemical company |
|---|---|
| Application | Automatic pallet wrapping |
| Key requirement | Separation of the working area and operator protection |
| Installed protection | Full guarding and gate-position limit switches |
| Operation | Control panel outside the guarded area |
| Workstation design | Machine layout, available space, loading and unloading access |

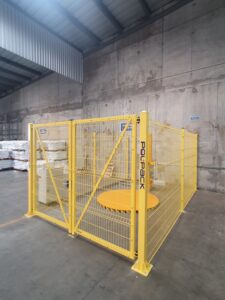

Original installation photographs
See the equipment and layout.
