Manufactured by POLPACK ZEUS / Poland
Extensive configuration options.
A pallet wrapper built around your needs.
Wrapper SA is the most configurable pallet wrapping machine in our range, designed and manufactured in Warsaw, Poland. We match the turntable, column height, load capacity, film system and controls to your loads and working conditions. Options range from standard pallet handling to special machines with a load capacity of up to 5 tonnes.
5year warrantySubject to annual inspections and warranty terms.
Machine · film · load
We select the machine, film system and stretch film as one load-protection process. Brake-based tension control and powered pre-stretch are different solutions. The choice depends on your product, film and operating conditions.
Film-tension control
BrakeBoth Wrapper SA brake variants use a multi-roller film carriage. The brake controls film tension; it is not a motor-driven pre-stretch system.
For Wrapper SA pallet wrappers with mechanical or electromagnetic film tension control, we select suitable low-elongation stretch films. Matching the film to the wrapper settings helps achieve high load stability and reduce the cost of securing each pallet.
Fixed pre-stretch
150–280%One motor drives the pre-stretch rollers. A fixed pre-stretch ratio is selected within 150–280% to suit your film and load. The pre-stretch ratio is not continuously adjustable during operation. Film tension between the carriage and load can be continuously adjusted independently of the fixed pre-stretch ratio.
For Wrapper SA pallet wrappers with a single-motor pre-stretch system, we recommend stretch films suitable for powered pre-stretching. We match them to the machine's pre-stretch ratio and the characteristics of the pallet load, taking account of the load type, its sensitivity to compression and the protection required for transport.
During trials, we check load stability, film consumption and wrapping cost per pallet to confirm the correct film selection and machine settings.
For Wrapper SA, the choice of film system depends on the characteristics of the load and the operating conditions at the wrapping station. Select your pallet wrapper and film with POLPACK ZEUS.
Designed and manufactured in Poland
Choose Wrapper SA when pallet dimensions, loading method or operating conditions require a tailored configuration. We design and manufacture our pallet wrappers in Warsaw and provide machine selection, packaging trials and service support.
A machine matched to your workstation
We configure the complete machine around your requirements, from workstation geometry and the film system to materials and components suited to the operating environment. Compatibility and availability of individual options are confirmed in our quotation.
Core equipment
Matched to your requirements
Selecting equipment for unstable loads
We match the equipment and wrapping sequence to your product. A top press, turntable grip and film settings perform different, complementary roles.
Wrapper SA can be equipped with a pneumatic top press. The cylinder stroke is selected to suit load heights. This optional top press helps stabilise the load as the pallet rotates.
We can provide a higher-grip turntable or locking fixtures matched to the pallet and load. These help prevent the base from slipping; selection depends on the product and loading method.
The programme can begin with a gentle initial wrap at low film tension. Once the load is initially stabilised, the main wrapping phase uses settings selected for pallet protection. We also select the turntable speed.
A suitably configured turntable wrapper can handle some unstable loads. We confirm suitability in trials with your product, including its tolerance of rotation and top pressure. Where the load cannot tolerate rotation or cannot be adequately stabilised, a rotary-arm wrapper with a stationary pallet may be more appropriate.
Construction matched to your process
Wrapper SA is designed for reliability, straightforward servicing and the requirements of your workstation.
For special designs, we also select components, chains and bearings to suit the environment. We can prepare the machine for sub-zero temperatures, splashing or contact with specified chemicals.
Tell us the operating temperature, cleaning method, and the type, concentration and temperature of cleaning chemicals. This allows us to specify materials, protection measures and the protection rating. Chemical resistance is selected for the actual substances and contact conditions.
As with Wrapper SE, the design uses separate components. This supports fault diagnosis and allows a faulty component to be replaced without replacing the entire control system because of one component failure.
This can reduce the scope and cost of a repair. Our service team determines the repair after diagnosing the fault. Machine configuration and equipment for your process are confirmed before the order is fulfilled.
POLPACK ZEUS · In practice
The pallet wrapper can be configured for recessed installation, allowing pallets to be brought onto the turntable without an access ramp. The frame and recess are matched to the specific machine and site conditions. The photographs show the frame before installation, the wrapper fitted into the frame and a separate example of a completed installation.
POLPACK ZEUS · In practice
The workstation layout is selected around pallet handling and the available space. This installation combines a Wrapper SA pallet wrapper with an E-shaped turntable and dedicated perimeter guarding.
Wrapper SA in practice
Explore different Wrapper SA configurations and load-wrapping examples. The photograph captions identify equipment such as top presses, E-shaped turntables and stainless steel versions. Original demonstration videos are preserved.
Wrapper SA pallet wrapping machine
Standard specifications and available options. Our designs include a structural margin, and reinforced versions are available on request. This does not permit exceeding the load capacity confirmed for the particular machine. Column height is not the same as usable wrapping height; we confirm the required wrapping height and final configuration in our quotation.
| Pallet load capacity | Wrapper SA: 2,100 kg; Wrapper SA E: 1,500 kg in standard configurations; reinforced versions on request |
|---|---|
| Turntable diameter | 1,500 mm standard; 1,650, 2,000 or 2,500 mm and E-shaped turntable optional; larger sizes on request |
| Column height | 2,200 mm standard; 2,600, 3,000, 3,600 mm and taller columns to order |
| Power supply | Three-phase 400 V; 230 V optional |
| Base machine weight | 300 kg |
| Turntable and carriage drive | Chain drive |
| Wrapping programmes | 10 programmes; manual and semi-automatic operation |
| Film tension and pre-stretch system | Mechanical friction brake; optional electromagnetic brake or fixed single-motor pre-stretch with continuously adjustable film tension |
| Single-motor pre-stretch | Fixed ratio selected within 150–280% to suit the film and load |
| Single-motor system film tension | Continuously adjustable between the carriage and load |
| Controls | Unitronics; optional colour Weintek touchscreen |
| Protection rating | IP54 standard; enhanced protection specified for the working conditions |
| Compressed air connection | Required for the optional pneumatic top press |
| Operating language | Polish; other languages on request |
SE or SA?
Wrapper SE offers compact dimensions and a brake-based film system for everyday work. Choose Wrapper SA when you need extensive customisation, special turntables, a pneumatic top press, environmental adaptations or optional single-motor pre-stretch.
Compare pallet wrapping machinesPrepare your enquiry
Send the minimum and maximum load dimensions, pallet weight, pallets per shift, loading method, available space and environmental conditions. Tell us about unstable loads and the film you currently use.
Arrange packaging trials in WarsawPOLPACK ZEUS warranty and service
Wrapper SA is covered by a 5-year warranty, subject to an inspection once a year and the warranty terms. Contact us for details and to arrange an inspection. For deliveries outside Poland, installation, commissioning, service arrangements and any travel costs are agreed individually.
Ask about warranty and serviceMachine and material
We match stretch film to the chosen tension or pre-stretch system and the type of load. During trials, we check material consumption and the quality of pallet protection.
Film selection and consumption audit Explore stretch film (PL)Investment options
Ask our sales team about financing for the selected machine. Availability, eligibility and terms depend on the customer and country.
Need a pallet wrapper for a limited period? We also offer pallet wrapper rental. Ask our sales team about available models, dates, location and terms.
Ask about rentalBefore choosing a model
Not always. Wrapper SA can have an optional pneumatic top press with a cylinder stroke matched to the load. A higher-grip turntable or locking fixtures and a gentle initial wrap can also help. We confirm suitability in trials. The load must tolerate rotation and any top pressure; otherwise, we consider a solution with a stationary pallet.
Wrapper SA offers extensive customisation, including turntable selection, a top press, controls and adaptation to working conditions. We compare specific configurations after reviewing your pallets and workstation.
Yes. One available solution is an E-shaped turntable with a pallet-truck cut-out. The configuration must suit the pallets and the pallet truck being used.
We can prepare a version adapted to sub-zero temperatures. Tell us the operating temperature and other environmental conditions when requesting a quotation.
Wrapper SA applications
Real installations show how a configuration is matched to the customer's product. Explore both case studies in English.

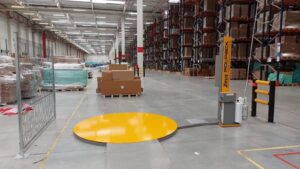

Wrapping oversized pallets in logisticsWrapper SA configured for large pallet loads. Read the case study.

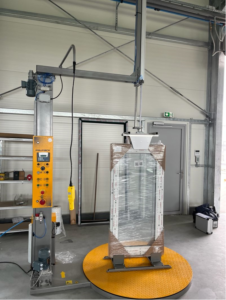

Wrapping windows with a pneumatic top pressWrapper SA with fixtures matched to the product. Read the case study.Pallet wrapping machine selection guide →
